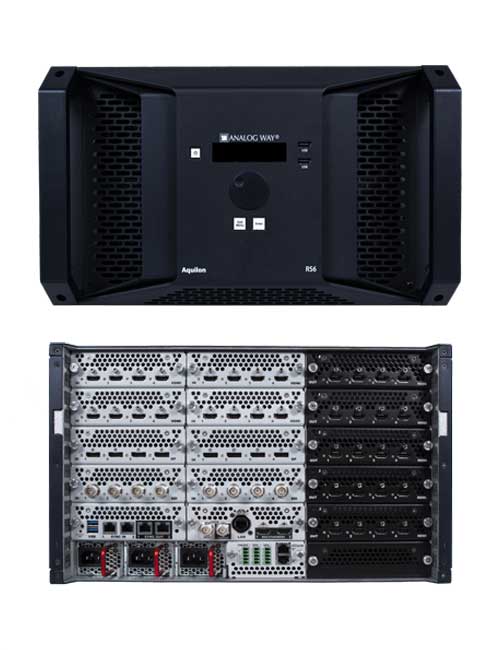

Aquilon RS6

Aquilon RS6

Aquilon RS6 is a mission-critical 4K/8K/16K multi-screen presentation system and videowall processor with 32x 4K inputs and 20x 4K outputs, delivering uncompromising presentation experiences to high-end staging and premium system integration. Aquilon RS6 combines industrial grade reliability, unrivaled ease-of-use, versatile 4K digital connectivity, unmatched real-time 10/12-bit 4:4:4 video processing power, best-in-class image quality and pure 4K60p on each input and output with ultra-low latency.

Description

Aquilon RS6 is a mission-critical 4K/8K/16K multi-screen presentation system and videowall processor with 32x 4K inputs and 20x 4K outputs, delivering uncompromising presentation experiences to high-end staging and premium system integration. Aquilon RS6 combines industrial grade reliability, unrivaled ease-of-use, versatile 4K digital connectivity, unmatched real-time 10/12-bit 4:4:4 video processing power, best-in-class image quality and pure 4K60p on each input and output with ultra-low latency.

32 Seamless Inputs

  • 32 seamless 4K60p inputs via 6 pre-installed input connector cards:
    • 16x HDMI 2.0 (18 Gbps bandwidth allowing up to 4K60p 8-bit 4:4:4 or up to 4K60p 12-bit 4:2:2 or up to 4K30p 12-bit 4:4:4)
    • 8x DisplayPort 1.2 (21.6Gbps bandwidth allowing up to 4K60p 10-bit 4:4:4 or up to 4K60p 12-bit 4:2:2)
    • 8x 12G-SDI (up to 4K60p 10-bit 4:2:2) – also compatible with 3G-SDI and 6G-SDI (SDI input cards can be optionally replaced by 4x 12G-SDI + 1x 2.5GbE NDI-enabled port – ref. OPT-AQL-IN-IP-SDI)
  • All input connector cards can be field-replaced to accommodate a variety of connectivity arrangements
  • Field swappable input connector cards available separately: 8x HDMI 1.4 (RS6 upgradable up to 64x Dual/2K inputs), HDMI 2.0, DP 1.2, 12G-SDI, NDI+12G-SDI, SFP+, Optical, SDVoE
  • Supports 4K60p input as single, double or quad plugs (incl. 4x 3G‑SDI 2SI)
  • Supports input formats such as 8192×1080@60p (aka “8k x 1k”) on a single connector
  • Connector status LEDs for easy troubleshooting

20 Active Outputs

  • 20 active 4K60p outputs via 4 pre-installed output connector cards:
    • 20x HDMI 2.0 (18 Gbps bandwidth allowing up to 4K60p 8-bit 4:4:4 or up to 4K60p 12-bit 4:2:2 or up to 4K30p 12-bit 4:4:4)
  • All output connector cards can be field-replaced to accommodate a variety of connectivity arrangements
  • Field swappable connector output cards available separately: HDMI 2.0, DP 1.2, 12G-SDI, SFP+, Optical, SDVoE
  • Supports 4K60p output as single, double or quad plugs
  • Supports custom output formats such as 8192×1080@60p (aka “8k x 1k”) on a single connector
  • Connector status LEDs for easy troubleshooting
